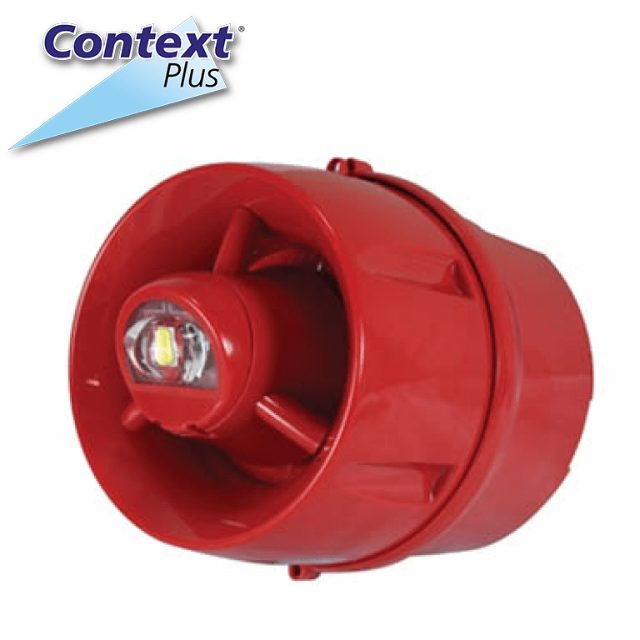

CONTEXT PLUS CON433A COMBINED ADDRESSABLE SOUNDER AND BEACON 103 DB DEEP BASE

Description

The CON433A/CX/DR is a loop-powered, addressable combined sounder + visual beacon unit with a deep base, designed for fire alarm systems. It carries LPCB certification and complies with EN54-3 (sounders), EN54-23 (visual alarm devices), and EN54-17 (isolators) when used with the matching base.

When wall-mounted, it provides a “W-2.4-8.2” light distribution — delivering at least 0.4 lux over a 2.4m × 8.2m area.

It employs the same lens and electronics used in Context’s Hi-Output Sounder VAD series, ensuring high reliability in both audible and visual signaling.

Key Features

Third-party certified (LPCB) to EN54-3, EN54-23, and EN54-17

103 dB(A) sound output @ 1 m

Onboard short-circuit loop isolator for protection and fault tolerance

Quiescent current: ≈ 550 µA

Alarm current: ≈ 14 mA @ 24 V DC (sounder + beacon at full)

Group addressing / synchronization function — allows multiple units to operate together under one command

7 selectable volume levels and up to 15 tone pairs for flexible installation tuning Deep base design for

better wiring access and mounting flexibility

Light distribution rated “W-2.4-8.2” (meets minimum 0.4 lux) when wall mounted

IP rating: The IP55 variant (CON433A/CX/DR/65) is available for weatherproof installations

Industrial Uses / Applications

Office buildings, corridors, stairwells

Hotels, schools, hospitals

Retail / commercial premises

Areas requiring both audible and visual alarms

Installations with addressable fire loop systems

Indoor or semi-protected exteriors
