HEAVY DUTY SJY10 ALUMINUM ALLOY CONFINED SPACE TRIPOD WITH WINCH SAFETY ACCESSORIES

Description

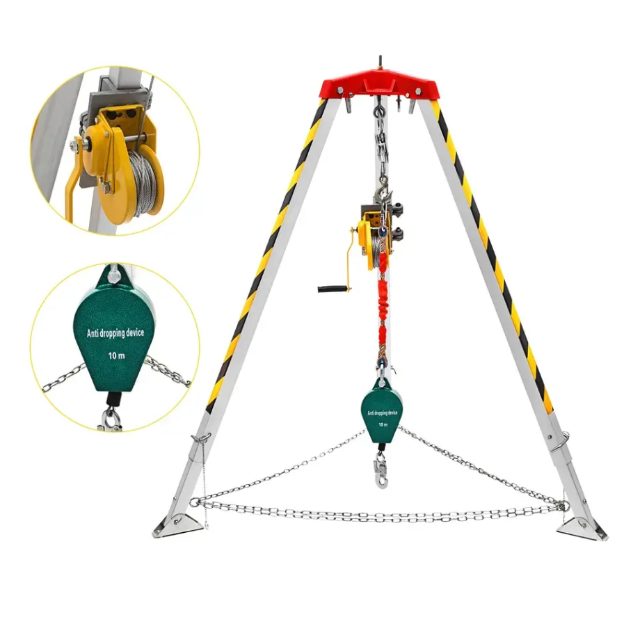

The SJY-10 is an aluminum tripod stand with built-in winch, designed for confined space work and rescue in manholes, pits or shafts. It folds down compactly for transport, yet extends to full height for access/rescue. The tripod includes a manual winch with 20 m wire rope, rated to lift personnel/materials up to ~ 180 kg. It has strong blocking/clamping force, stable foot-plates, and adjustable legs. Suitable for use in construction, confined spaces, rescue jobs.

Key Features

Material & Construction

Heavy duty aluminum alloy frame; rigid top-cap; adjustable legs; stable build.

Weight & Load Capacity

Tripod weight ≈ 18.5 kg; rated load ≤ 180 kg.

Closed vs Open / Height Range

Closed (folded) height ~ 1.34 m; fully open height ~ 2.14 m.

Winch & Rope

Comes with wire rope length 20 m; winch mechanical efficiency ~ 5:1; handle force ~ 0.2 kN.

Blocking Force / Strength

Blocking force ~ 22 kN.

Dimensions

Overall size when packaged / dimension approx. 173 × 39 × 36 cm.
