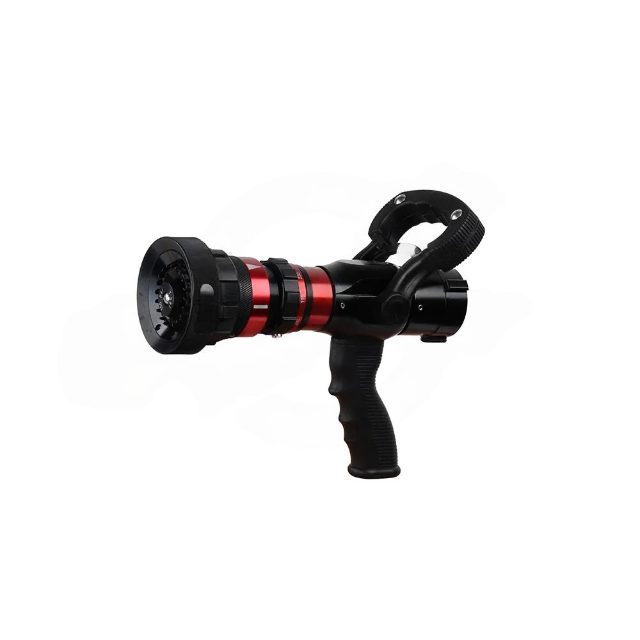

HEAVY DUTY 8111 ALUMINUM ALLOY PISTOL GRIP HANDLINE HOSE/HYDRANT FIRE EXTINGUISHER NOZZLE GUN SPRAY

Description

The model 8111 is a heavy-duty handline fire-fighting nozzle featuring a pistol grip design, crafted from high-strength aluminium alloy (hard-anodised) for durability, corrosion-resistance and lightweight handling.

It’s designed for use on hydrant or fire-hose outlets (e.g., DN 65 / 2½″ inlet) and provides selectable flow and spray settings for flexibility in fire-attack operations. Key specs listed include a maximum range of approx. 40 m, working pressure ~0.6 MPa, flow settings of 115-230-360-480 L/min, and a spray angle up to ~120°.

Key Features

Material & Construction: Aluminum alloy body with hard-anodised finish for durability and corrosion resistance in high-use firefighting environments.

Inlet Size: DN 65 (≈ 2½″) compatible with standard fire-hydrant hose couplings.

Flow Adjustment: Manual selectable flow ranges of ~ 115 L/min, 230 L/min, 360 L/min, 480 L/min — gives operator flexibility.

Spray Angle / Range: Up to 120° spray angle for wide coverage; maximum reach approx. 40 m.

Working Pressure: Rated for ~ 0.6 MPa operating pressure.

Design / Ergonomics: Pistol-grip style handle (engineering plastic) for improved control and reduced fatigue during extended operation.

Weight: Approx. 2 kg (light enough for handheld operation in emergency).

Industrial Uses / Applications

Handline operation on hydrant systems in commercial and industrial buildings

Fire-hose deployment in large storage, warehouses, manufacturing plants

Fixed standpipe or hydrant stations requiring high-flow, adjustable nozzles

Emergency fire-attack situations where lightweight, high-reach nozzles are required
