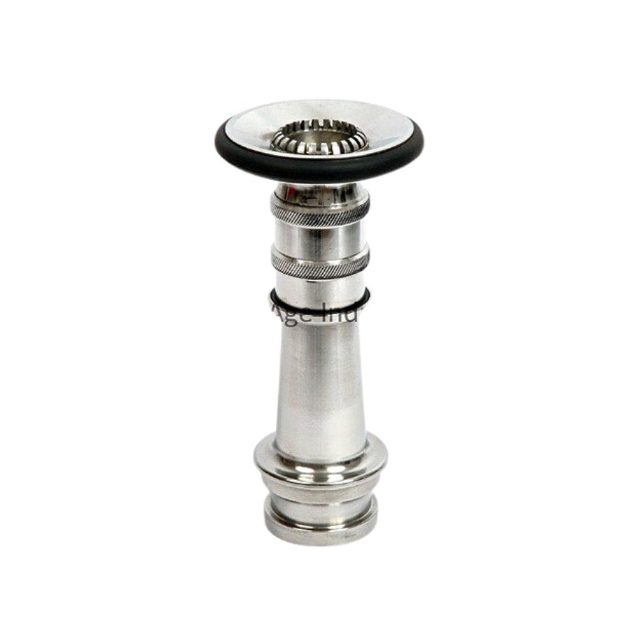

HEAVY DUTY N TPN 01 STAINLESS STEEL TRIPLE PURPOSE FIRE FIGHTING SAFETY NOZZLE

Description:

The N-TPN-01 is a heavy-duty triple-purpose fire-fighting nozzle made from stainless steel, designed for hydrant or branch pipe systems. It offers three selectable spray modes—jet, spray/mist, and shut-off—allowing the operator to adapt to different fire scenarios.

The unit employs a 2½″ male instantaneous inlet coupling (≈ 63 mm) and supports a maximum operating pressure of ~ 150 PSI (~10.3 bar).

Its polished stainless steel finish provides corrosion resistance and suitability for demanding industrial or fixed-fire-fighting installations.

Key Features

Material – Stainless steel (polished finish): Ensures long-term durability and corrosion resistance.

Triple-purpose functionality (Jet / Spray / Shut-off): Provides operational flexibility across fire attack modes Inlet connection: 2½″ male instantaneous coupling: Standard compatibility with fire-hydrant hose systems.

Maximum operating pressure: ~150 PSI (≈10.3 bar): Designed for robust firefighting system pressures Polished surface treatment: Aesthetic finish plus additional protection.

Ease of handling & control: Ergonomic design for use under pressure.

Industrial Uses / Applications

Fixed fire-hydrant systems in industrial plants, warehouses, and factories

Hydrant branch pipe installations in commercial or high-risk buildings

Retrofitting existing hydrant systems requiring versatile nozzle control

Applications needing both solid jet and wide spray capability
