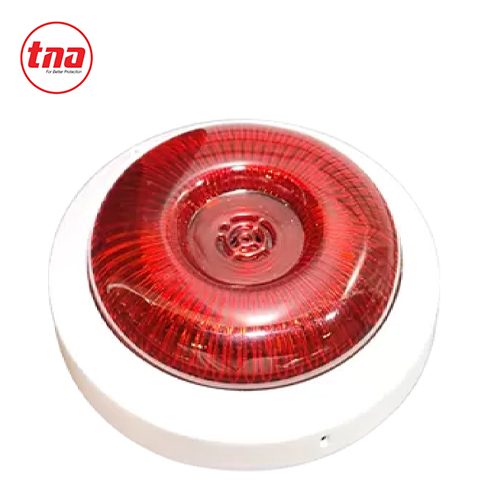

TNA TXC7301 Conventional Sounder and Strobe Combined Fire Alarm Device
Price on request
The TNA TXC7301 Conventional Sounder and Strobe Combined Fire Alarm Device provides both audible and visual alerts in a single compact unit. Designed for conventional fire alarm systems, it helps deliver clear emergency notifications in commercial and industrial environments.
Read full descriptionSKU: TNA-EME-00457
Share this product
Free Shipping
30-Day Returns
2-Year Warranty
Description:
The TNA TXC7301 Conventional Sounder and Strobe Combined Fire Alarm Device is designed to provide effective audible and visual warning during fire emergencies. It combines a sounder with a flashing strobe to help alert occupants in conventional fire alarm systems. Operating on 24V DC, the device offers a sound output of 75 to 105 dB at a distance of 3 meters and a flash frequency of 1.0 to 1.8 Hz. Its compact ABS plastic housing and practical design make it suitable for hotels, offices, banks, shopping malls, warehouses, restaurants, and other commercial or industrial facilities.
Key Features:
- Combined sounder and flashing strobe
- Suitable for conventional fire alarm systems
- Audible and visual emergency notification
- Sound output from 75 to 105 dB
- Flash frequency from 1.0 to 1.8 Hz
- Compact ABS plastic housing
- Available in red or white
- Suitable for indoor applications
Industrial Uses / Applications:
- Commercial Buildings
- Manufacturing
- Warehousing
- Educational Institutions
Specifications
Power Supply Voltage
DC 24V
Acceptable Voltage Range
15 to 28V DC
Standby Current
Less than 10.0 mA
Sound Output
75 to 105 dB at 3 Meters
Flash Frequency
1.0 to 1.8 Hz
Sound Cycle Duration
2.5 to 4.5 Seconds
Wiring Polarity
Polarity Sensitive
Operating Temperature
Minus 10°C to Plus 50°C
Humidity Tolerance
Up to 95% RH Non Condensing
Material
ABS Plastic
Color
Red and White
Dimensions
100 mm Diameter × 44 mm Height
Weight
Approximately 108 g Including Base
