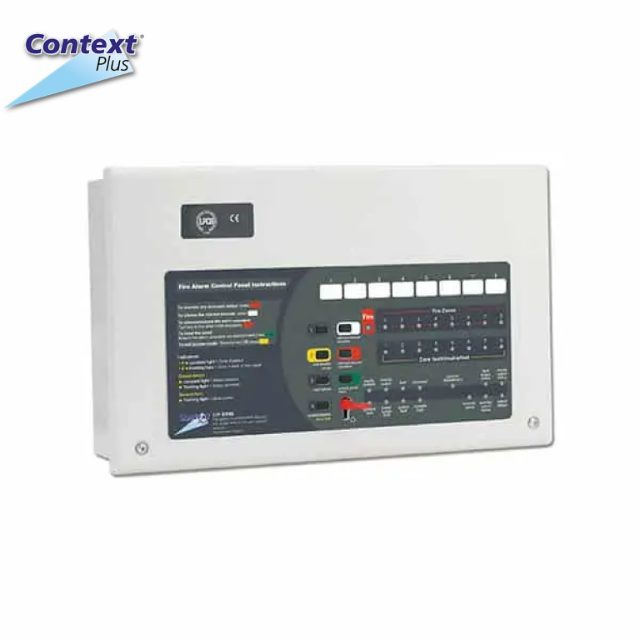

CONTEXT PLUS IP30 CONVENTIONAL FIRE ALARM PANEL 2 4 AND 8 ZONE EN54 2/4 CERTIFIED SAFETY EQUIPMENT

Name: CONTEXT PLUS IP30 CONVENTIONAL FIRE ALARM PANEL 2 4 AND 8 ZONE EN54 2/4 CERTIFIED SAFETY EQUIPMENT
SKU: GEN-FIR-00274
Price: 39900.00 PKR
Availability: InStock

No ratings yet | In Stock

Rs 39,900.00

"Specifications: - Certification: LPCB Ref. 176b-Cl-2 – Complies with BS EN 54 Parts 2 & 4. - Zone Inputs: 2, 4 or 8 zones (depending on model). - Sounder Outputs: 4 conventional sounder circuits. - Power Supply: 230 V AC input; switch-mode PSU rated at 1.5 A output. - Quiescent Current: Low (specific value varies by model). - Relays: 2 onboard (Fire & Fault) – SPCO 1 A @ 30 V DC. - Outputs: Remote and Reset open-collector outputs (30 mA max). - Inputs: Class Change and Alert (27 V max). - Expansion Interface: Supports up to 8 repeaters via one network driver card. - Battery Accommodation: 2 × 12 V VRLA (max 3.2 Ah each). - Mounting Options: Flush or surface installation (plastic enclosure). - Environmental: Suitable for operation in standard indoor conditions. - Operating Temp: -5 °C to +40 °C. - Humidity ≤ 95% RH. - Price mentioned per piece"

Read full description

SKU: GEN-FIR-00274

Free Shipping

30-Day Returns

2-Year Warranty

Description:

The Context Plus CFP IP30 Conventional Fire Alarm Panel is an EN54-2/4 certified multi-zone fire detection control panel available in 2-, 4- and 8-zone configurations. Built for installer-friendly setup and reliable long-term operation, it includes a built-in 1.5 A PSU, end-of-line modules, fault monitoring, and optional expansion for repeaters or relay boards. Its durable IP30 plastic enclosure ensures protection and easy wall mounting for use in offices, industrial sites, and public buildings.

Key Features:

LPCB-certified to EN54 Parts 2 & 4 standards

Color-coded control panel with intuitive buttons and combined keypad & key-switch access

Models available in 2, 4 or 8-zone configurations

Four independent conventional sounder circuits included

Built-in 1.5 A switch-mode power supply compliant with EN54-4/A2

Advanced programming options: zone walk-test, delayed alarm activation, non-latch mode* and coincidence logic*

Two dedicated on-board relays for fire and fault signal outputs

Compact plastic enclosure with flush or surface mounting (no separate bezel needed)

Low standby current draw for energy-efficient operation

Repeater support: up to eight two-wire repeaters via one CFP761 network driver card

Two open-collector outputs for remote functions (Remote & Reset)

Inputs for ‘Class Change’ and ‘Alert’ functionality

Space to accommodate two 12 V VRLA batteries (max. 3.2 Ah each)

Installer-friendly design allowing easy first-fix installation and routine maintenance

Industrial Uses & Applications:

Residential / Home

Commercial / Hospitality

Industrial / Manufacturing

Education / Laboratories

Specifications

Certification LPCB Ref. 176b-Cl-2 – Complies with BS EN 54 Parts 2 & 4

Zone Inputs 2, 4 or 8 zones (depending on model)

Sounder Outputs 4 conventional sounder circuits

Power Supply 230 V AC input; switch-mode PSU rated at 1.5 A output

Quiescent Current Low (specific value varies by model).

Relays 2 onboard (Fire & Fault) – SPCO 1 A @ 30 V DC

Outputs Remote and Reset open-collector outputs (30 mA max)

Inputs Class Change and Alert (27 V max)

Expansion Interface Supports up to 8 repeaters via one network driver card

Battery Accommodation 2 × 12 V VRLA (max 3.2 Ah each)

Mounting Options Flush or surface installation (plastic enclosure).

Environmental Suitable for operation in standard indoor conditions

Operating Temp -5 °C to +40 °C

Humidity ≤ 95% RH

Price Mentioned per piece
