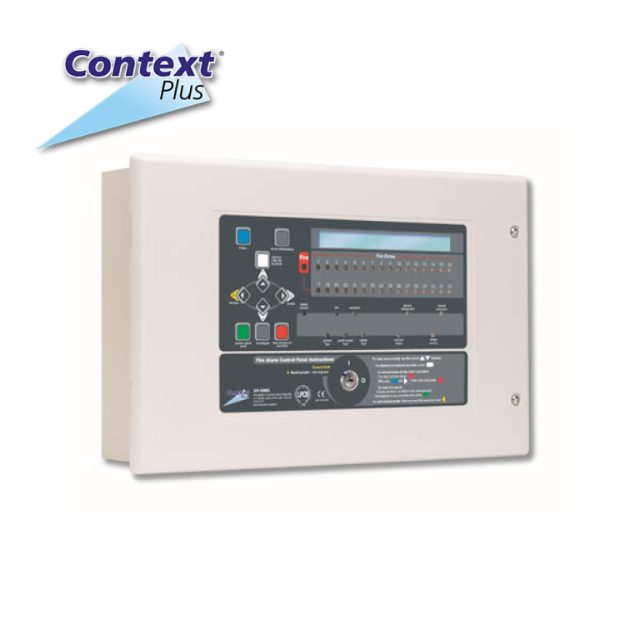

CONTEXT XFP502 32 ZONE NETWORKABLE ADDRESSABLE CONTROL PANEL

"Description

The XFP502 / X / CON series is a networkable, addressable fire alarm control panel with two loops supporting up to 32 zones. It uses either the XP95 / Discovery protocol or C-TEC’s own CAST protocol depending on variant. It is LPCB / EN54-2 / EN54-4 certified (when used with matching options). The panel is housed in a metal enclosure, comes with integrated power supply, control keypad, and diagnostics interface. It supports networking of multiple panels or repeaters via RS-485, and has programmable relays, conventional sounder circuits, inputs, and outputs.

Key Features

• Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB).

• Compatibility with Context Plus addressable detectors and devices.

• Two independently programmable conventional sounder circuits.

• Two programmable inputs.

• A fault output relay and three programmable relay outputs with voltage free changeover contacts.

• A selection of zone dependency/coincidence functions.

• A day/night (building occupied/unoccupied) function.

• An investigation delay period function.

• Phased evacuation facility.

• An alarm counter that records how many times the panel has been in alarm state.

• Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop.

• An integral EN54-4/A2 switch mode power supply.

• Adjustable contamination levels.

• Earth fault monitoring.

• Combined keypad / key switch entry to Access Levels 2 and 3.

• 999 event monitoring.

• An intuitive Windows based upload-download PC program.

• Optional flush-mounting bezel and glazed stainless steel enclosure also available.

• Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 network. Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel.

Industrial Uses / Applications

Commercial buildings, offices, retail complexes

Hotels, hospitals, educational institutions

Medium to large industrial & manufacturing premises

Multi-story residential blocks

System expansions where multiple panels must interoperate

Any scenario needing scalable and addressable fire detection control"
